รายละเอียดสินค้า:
|
| ความสามารถในการบังคับ: | สูงสุด 500 กก | ความแม่นยำ: | +-0.5% |
|---|---|---|---|
| เครื่องยนต์: | พานาโซนิคเซเวอร์มอเตอร์ | จังหวะ: | 850 มม |
| ปณิธาน: | 1/250,000 | พลัง: | 1PH, AC220V, 50/60Hz |
| น้ำหนัก: | 70 กิโลกรัม | แรงดันไฟฟ้า: | 220 V, 380 V, 240 V, 110 V |
| ความสามารถในการโหลดสูงสุด: | 5,000 กิโลกรัม | บังคับให้เกิดข้อผิดพลาดสัมพัทธ์: | ± 0.5% |
| ช่วงความเร็วทดสอบ: | 0.1~500 มม./นาที | การทดสอบจังหวะ: | 1200 มม. |
| โหลดเซลล์เสริม: | 1,2,5,10,20,50,100,200,500,1000,2000,5,000 กิโลกรัม | ระดับความแม่นยำ: | 0.5 |
| แบบอย่าง: | ly-1066a, ly-1066b | ||
| เน้น: | 30kn Universal Testing Machine,90 Degree Peel Testing Machine,OEM/ODM Tensile Strength Tester |
||

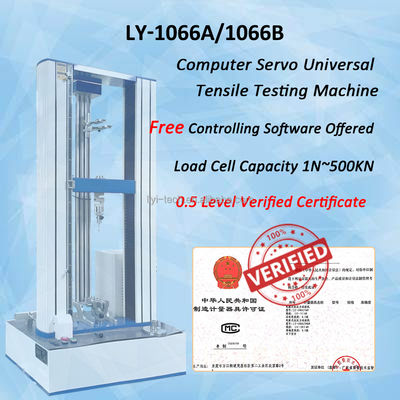

| Model | LY-1066A | LY-1066B |
|---|---|---|
| Accuracy Class | 0.5 (with Verified Certificate) | |
| Optional Load Cell | 1,2,5,10,20,50,100,200,500,1000,2000,5000kg | |
| Max Load Capacity | 5000KG | 2000KG |
| Resolution | 1/250,000 | 1/150,000 |
| Force Relative Error | ±0.5% | |
| Test Speed Range | 0.1~500mm/min | 50~500mm/min |
| Motor | Panasonic Servo Motor | AC Inverter Motor |
| Test Stroke (contain clamps) | 1200mm | |
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental equipment. Our company features:
We are committed to developing, innovating, and combining international testing standards with specific customer demands to establish new benchmarks in the Chinese testing industry.
Yes, we are one of the professional and largest manufacturers of testing equipment in China. Every machine purchased from our factory comes with 12 months warranty after shipment. We offer 12 months of free maintenance, with an additional 2 months extension considering sea transportation time.
If your machine doesn't work, you can contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary, and provide a solution within 24 to 48 hours.
For standard machines, we typically have stock available. If not in stock, normal delivery time is 15-20 working days after deposit receipt. We can make special arrangements for urgent orders.
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the machine.
We provide English operation videos via email with each order. Most machines are shipped fully assembled - you only need to connect the power cable to begin use. If needed, we can also assist with on-site installation.
